Amflow offers an unrivalled combination of power, range, and weight. Packed with innovative and seamlessly integrated technology, these electric full suspension mountain bikes are built to deliver the ultimate ride.

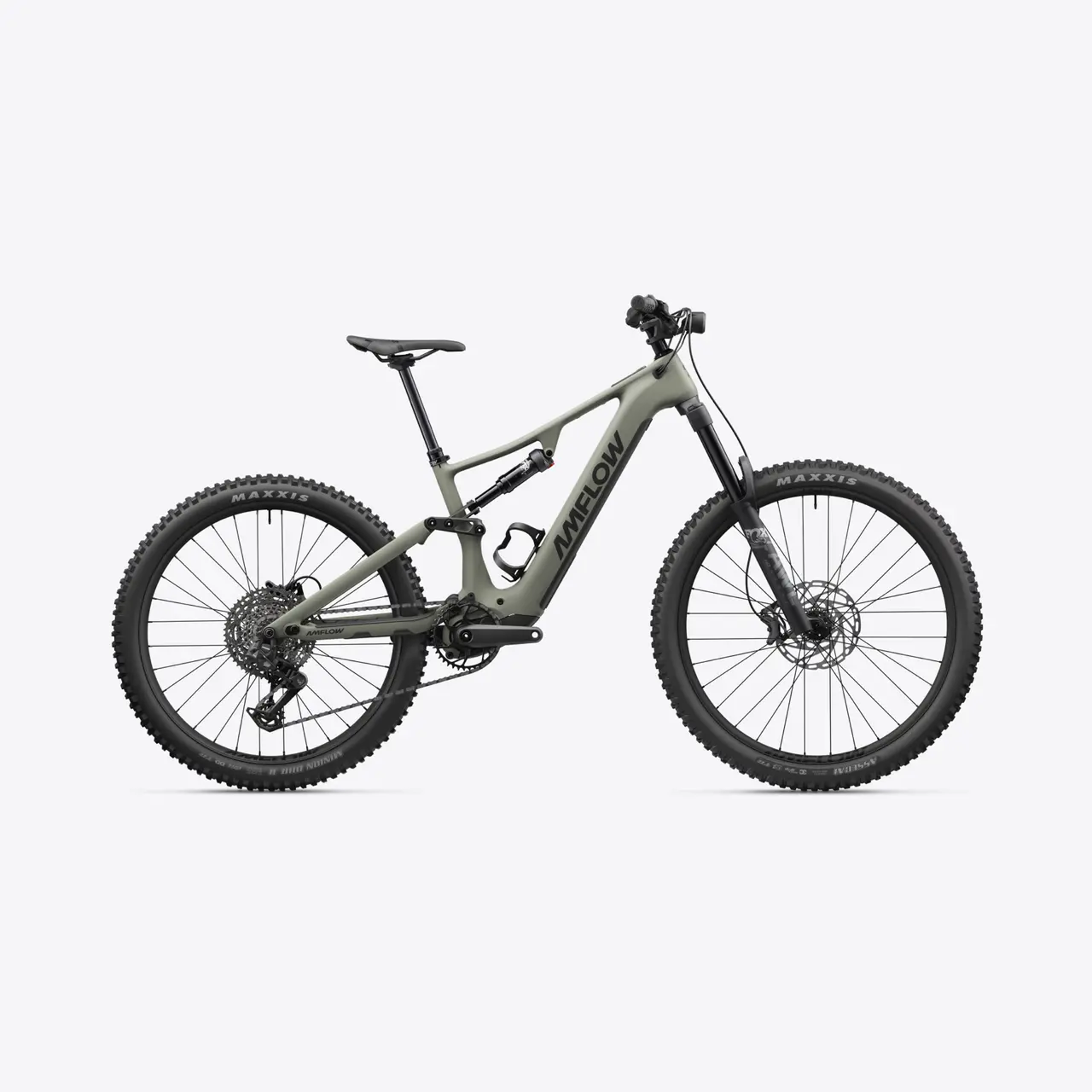

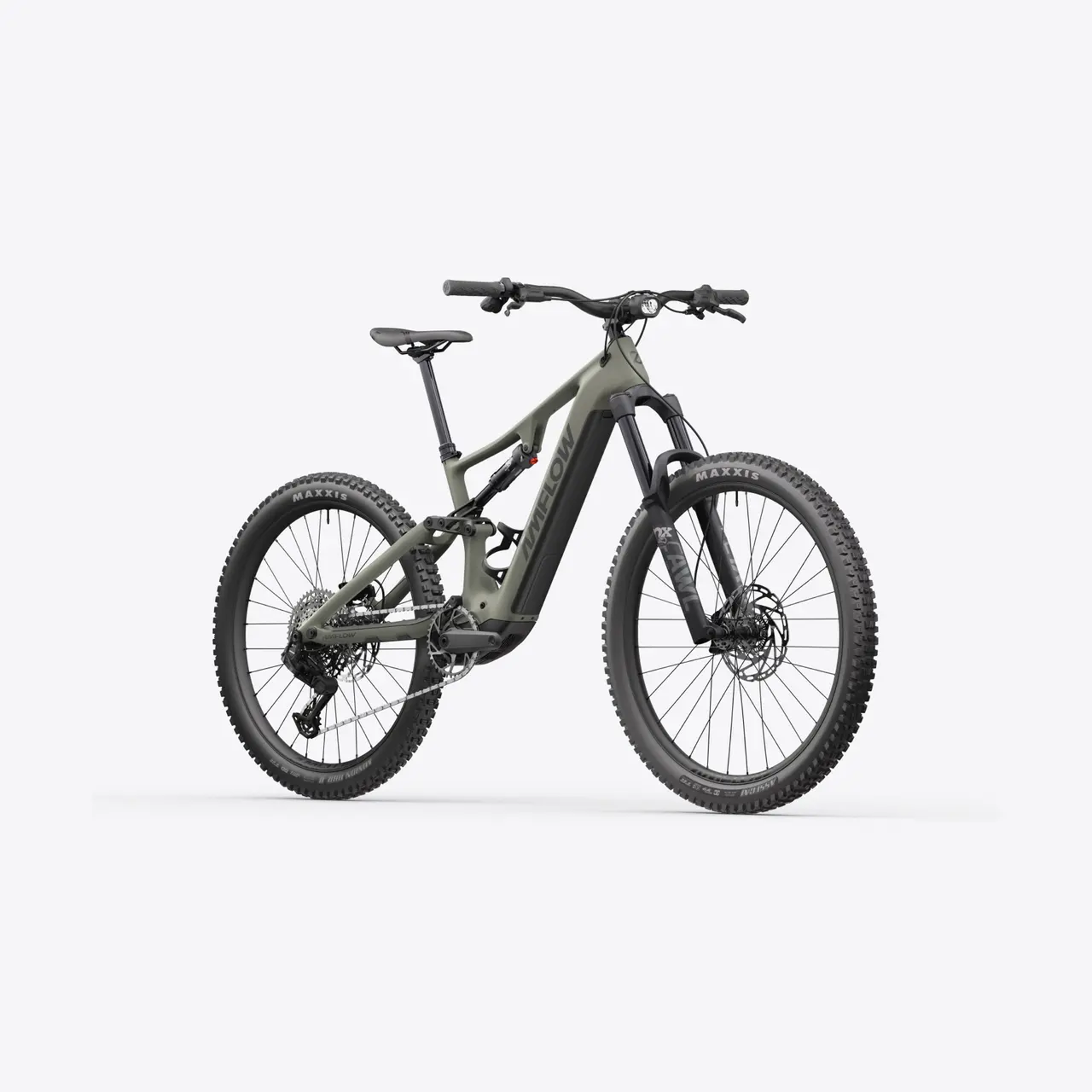

PR Carbon
Amflow PR Carbon combines striking aesthetics with a full-carbon frame, delivering up to 125Nm of torque and 1100W of peak power thanks to the Avinox M2 Drive Unit. With a swappable battery for extended rides, it gives you the freedom to ride further and push your limits in style.
Highlights
- Powerful, smooth and quiet Avinox M2 motor, with up to 125Nm torque.
E-MOUNTAINBIKE Magazine: "With the M2S and M2, Avinox have fundamentally redefined the way technical climbs are approached. The motor does not merely deliver exceptional power and torque; it sustains that output with a consistency that holds up under lab scrutiny. Add to that improved efficiency, a strong battery platform and a well-integrated digital ecosystem, and the proposition is a compelling one."
- Removable, long range 800 Wh battery
- Full carbon frame
- SRAM S1000 Eagle AXS wireless drivetrain
- Fox suspension
Geometry Design: Flexible Adjustment, Effortless Control
Amflow PR features a cutting-edge progressive geometry. With precision fine-tuning available for the head tube angle (5 positions), bottom bracket height (2 positions), and chainstay length (4 positions), it offers up to 40 geometric combinations. This allows for precise adaptation to different terrains and riding styles, empowering you to enjoy the art of tuning and take full control of your ride.
With a default head tube angle of 64.5°, the adjustable headset cups offer 5 levels of fine-tuning (-1°, -0.5°, 0°, +0.5°, +1°). A slacker setting increases trail for greater high-speed stability and a reduced risk of going over the bars. A steeper setting improves agility and climbing efficiency while making the bike less prone to understeer.
A bottom bracket height adjustable to two positions - 349 or 353mm - lets you adapt precisely to different terrain. The 353mm high setting helps you clear rough obstacles with confidence and reduces the risk of bottoming out, while the 349mm low setting lowers the bike's centre of gravity for stronger cornering grip. Combined with the Horst pivot flip-chip adjustment, the bottom bracket height range is up to 16.41mm.
The 4-position adjustable chainstay (440mm to 452mm) offers flexible geometry tuning while accommodating 29-inch wheels, delivering outstanding rollover capability.
Ultra-Light Carbon Fibre Frame, Easy Handling
The Amflow PR frame weighs around 2.9kg, yet never compromises on strength or rigidity. It handles heavy demands with a light touch, making every ride through rough terrain more composed.
Precision, By Design
From power to control, Amflow PR is built without compromise. Experience comprehensive performance that puts you in command of every ride.
Battery and Range
Removable Battery, Long-Lasting Range
An innovative slide rail design meets Battery Lock - delivering an exceptional balance of ease of use and security.
Quick Swap, Easy Recharge
Amflow PR supports independent battery removal for charging and quick swapping, flexibly solving the problem of finding charging stations and enabling rapid energy replenishment on long trips. While reducing maintenance costs, it also makes every departure more worry-free.
Powerful Range
800Wh high-capacity battery with fast charging. Removable battery and the potential for dual-battery expansion.
Avinox M2 Drive Unit
The drive unit is as light as 2.65kg, maintaining its lightweight advantage while achieving steady performance improvements. Compared to the previous generation, power density has been increased by 4.6%.
More Ride, Less Noise
Innovative compound planetary gears and helical gear design suppress the operating sound of the Avinox M2 Drive Unit to as low as 45dBA. Mechanical noise is well controlled. On the trail, the sound of the wind and trail feedback become clearer, allowing you to focus on your rhythm and handling, fully immersing yourself in the joy of riding.
Natural Support, Peak Power
Power shouldn't be abrupt. The Avinox M2 Drive Unit utilises multiple high-precision sensors and intelligent algorithms to adjust output in real-time, translating power into a natural, linear pedal feel. The Avinox Drive System also features a specialised Auto mode, which adapts assistance in real-time based on terrain conditions and riding position. For the most challenging trails or steep inclines, activate Boost mode to instantly get 125Nm of torque and 1100W high-power assistance.
Drive Unit Summary
- Powerful output for faster, easier climbs
- Maximum Torque: 125Nm
- Peak Power: 1100W
- Ultra-High Efficiency: Sustained high-power output
- Millisecond Response: Quick starts, quiet riding
- M2 Drive Unit Weight: 2.65kg
- Traction Control System (TCS): With real-time data from a multi-sensor system, the Avinox Drive Unit dynamically adjusts power output to deliver stable, reliable rear-wheel traction and reduce the possibility of slipping

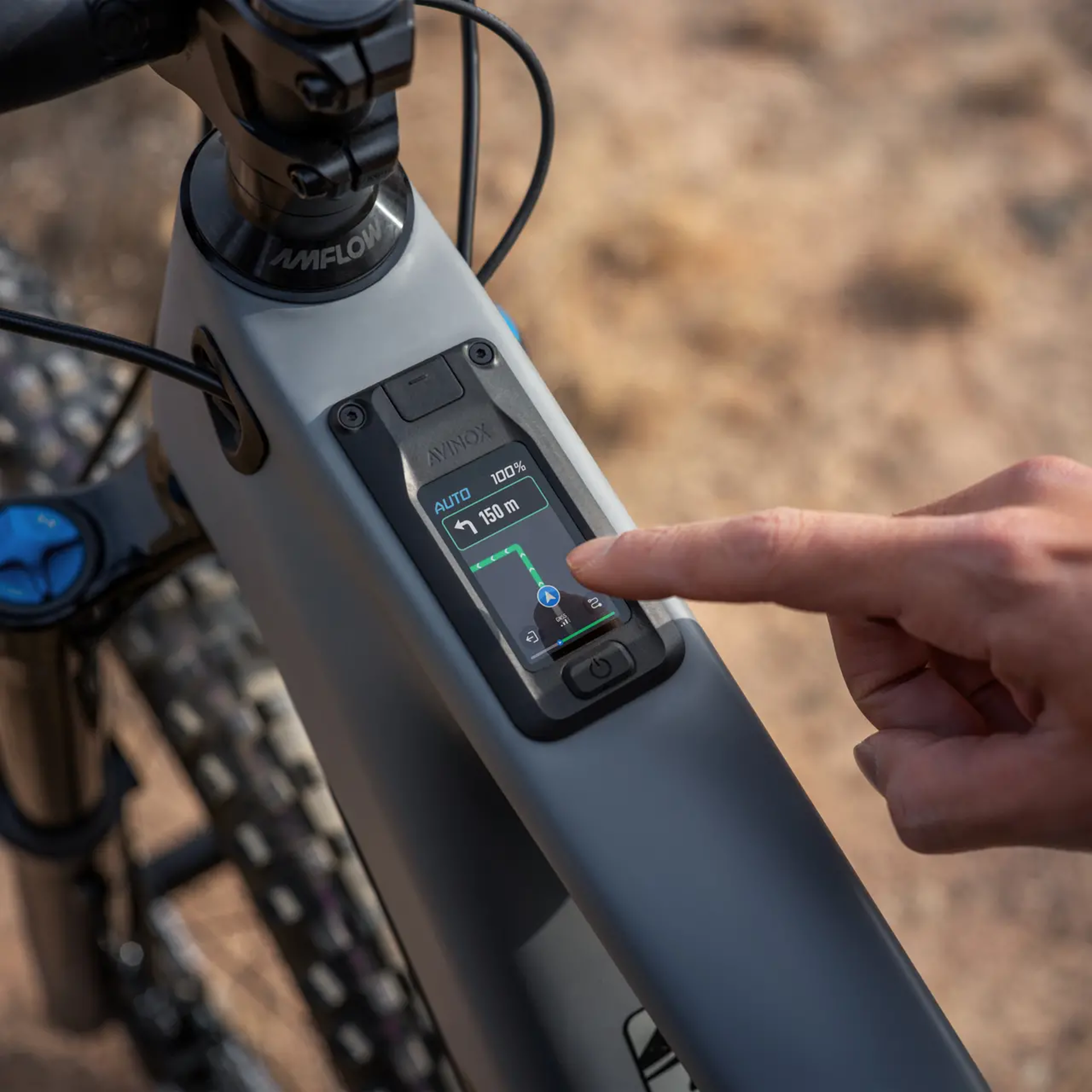

Touchscreen Control System: Smarter, From the Start
Offline Navigation, Made Smarter
The Avinox Ride app is compatible with third-party route imports and can convert historical tracks into route files (GPX/FIT/TCX formats), allowing one-click synchronisation and management of ride data. Once the Control Display receives the data, it can navigate independently without a phone connection, providing real-time turn-by-turn guidance and off-course alerts.
Apple Find My Tracking
Integrated into the Apple Find My ecosystem, leveraging Apple's vast network to help you track your bike's location and battery level anytime via the "Find My"app. It also features a one-tap buzzer function to locate your bike.
Smart Heart Rate Control
No complex parameter settings are required. Riders simply set a target heart rate zone in the Avinox Ride app and pair a heart rate monitor. The drive system then automatically adjusts drive unit output based on real-time data, keeping you in the optimal heart rate zone to ensure safety.
SmoothShift Fast Gear Changes
Deeply integrated with the SRAM electronic rear derailleur, the Avinox Drive System enables the SmoothShift function, allowing you to shift while coasting. Change gears continuously without pedalling to keep your rhythm in check.
Your Ride, More Connected
Amflow PR seamlessly integrates cutting-edge smart technology into your daily ride, delivering effortless convenience on every journey.
- Smartphone connectivity: Supports GPS, OTA updates, Bluetooth, remote locating, Apple Find My and Bike Protection features.
- Smart Light Control: Wireless Controllers allow one-click switching of the front light and toggling between high/low beams for convenient operation.
- Custom Assist Mode: Customise your exclusive interaction interface within the Avinox Ride app.
Premium Build, Uncompromising Performance
Featuring powerful 4-piston Tektro TKD173 hydraulic disc brakes and massive 203mm rotors for superb control in all weathers and conditions.
Deeply customised in collaboration with world-class brand FOX, it achieves a deft balance between sensitive bump absorption and solid support through exclusive damper tuning and optimised suspension kinematics.
Designed with a mixed-wheel setup with a 29 inch front wheel and a 27.5 inch rear and equipped with Maxxis Assegai/Minion DHR II TR tyres for reliable traction.
