Amflow offers an unrivalled combination of power, range, and weight. Packed with innovative and seamlessly integrated technology, these electric mountain bikes are built to deliver the ultimate ride.

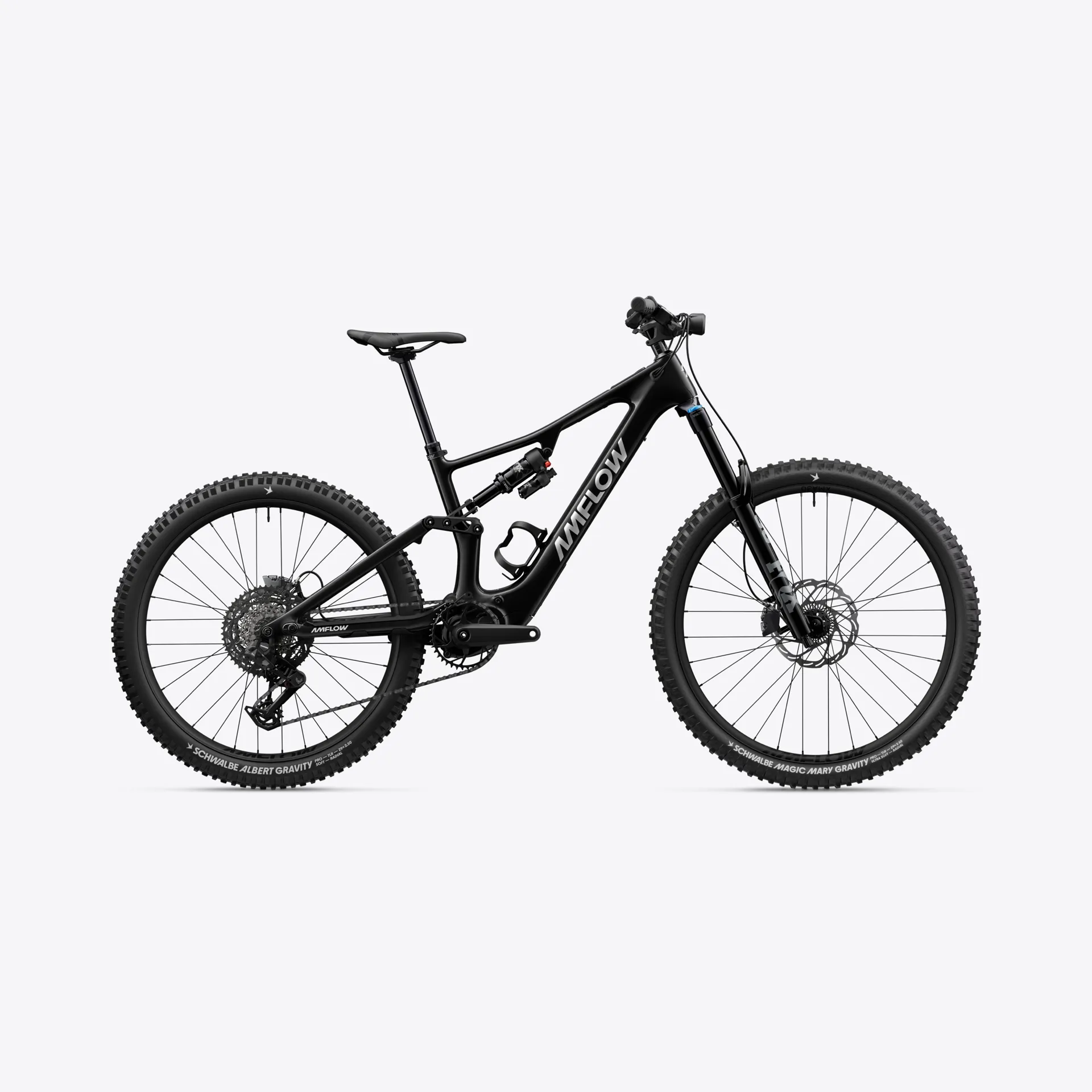

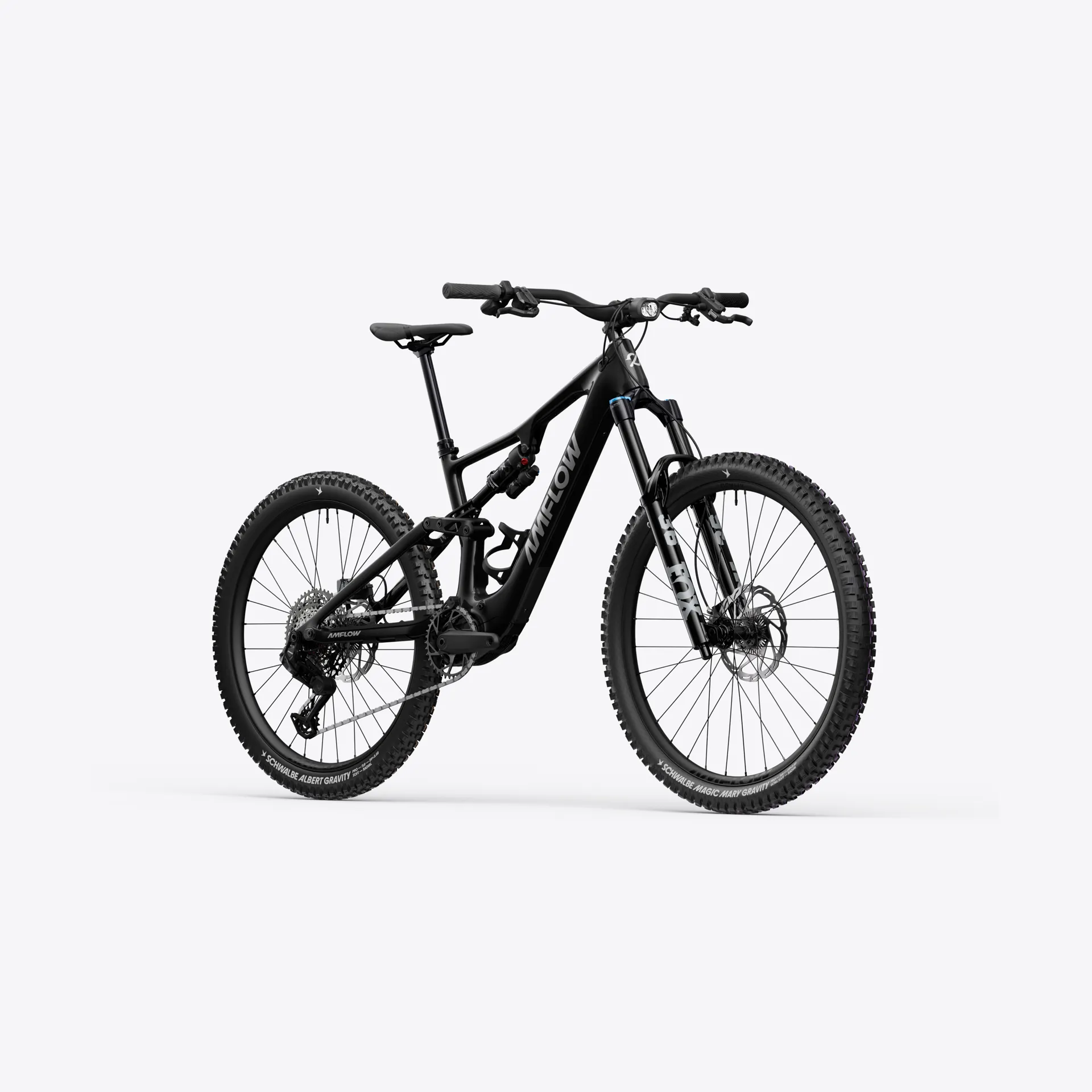

PX Carbon: Light Yet Limitless
A futuristic design, brought to life by shifting light and shadow.
Slim and light, yet remarkably powerful. An ultra-light carbon fibre frame delivers confident, effortless control.
Geometry Design
Sleek and Agile, Total Control
Featuring a compact, streamlined design with a total weight of approximately 2.4kg, it is lightweight without compromising on a powerful performance.
Versatile Geometry To Conquer Any Terrain
Amflow PX features a cutting-edge progressive geometry. With precision adjustments to the head tube angle (5 positions), bottom bracket height (2 positions), and chainstay length (4 positions), it offers up to 40 geometric combinations. This allows the bike to adapt precisely to different terrains and riding styles, empowering you to enjoy the art of tuning and take full control of your ride.
A bottom bracket height adjustable to two positions - 345 or 349mm - lets you adapt precisely to different terrain. The 349mm high setting helps you clear rough obstacles with confidence and reduces the risk of bottoming out, while the 345mm low setting lowers the bike's centre of gravity for stronger cornering grip. Combined with the Horst pivot flip-chip adjustment, the bottom bracket height range is up to 16.39mm.
With a default head tube angle of 64.2°, the adjustable headset cups offer 5 levels of fine-tuning (-1°, -0.5°, 0°, +0.5°, +1°). A slacker setting increases trail for greater high-speed stability and a reduced risk of going over the bars. A steeper setting improves agility and climbing efficiency while making the bike less prone to understeer.
The 4-position adjustable chainstay (438mm to 451mm) offers flexible geometry tuning while accommodating 29-inch wheels, delivering outstanding rollover capability.
Engineered in Every Detail
An approximately 2.4kg ultra-light carbon fibre frame outlines a minimalist aesthetic. Combined with significantly enhanced rear triangle stiffness, it blends a lightweight profile with robust handling stability.

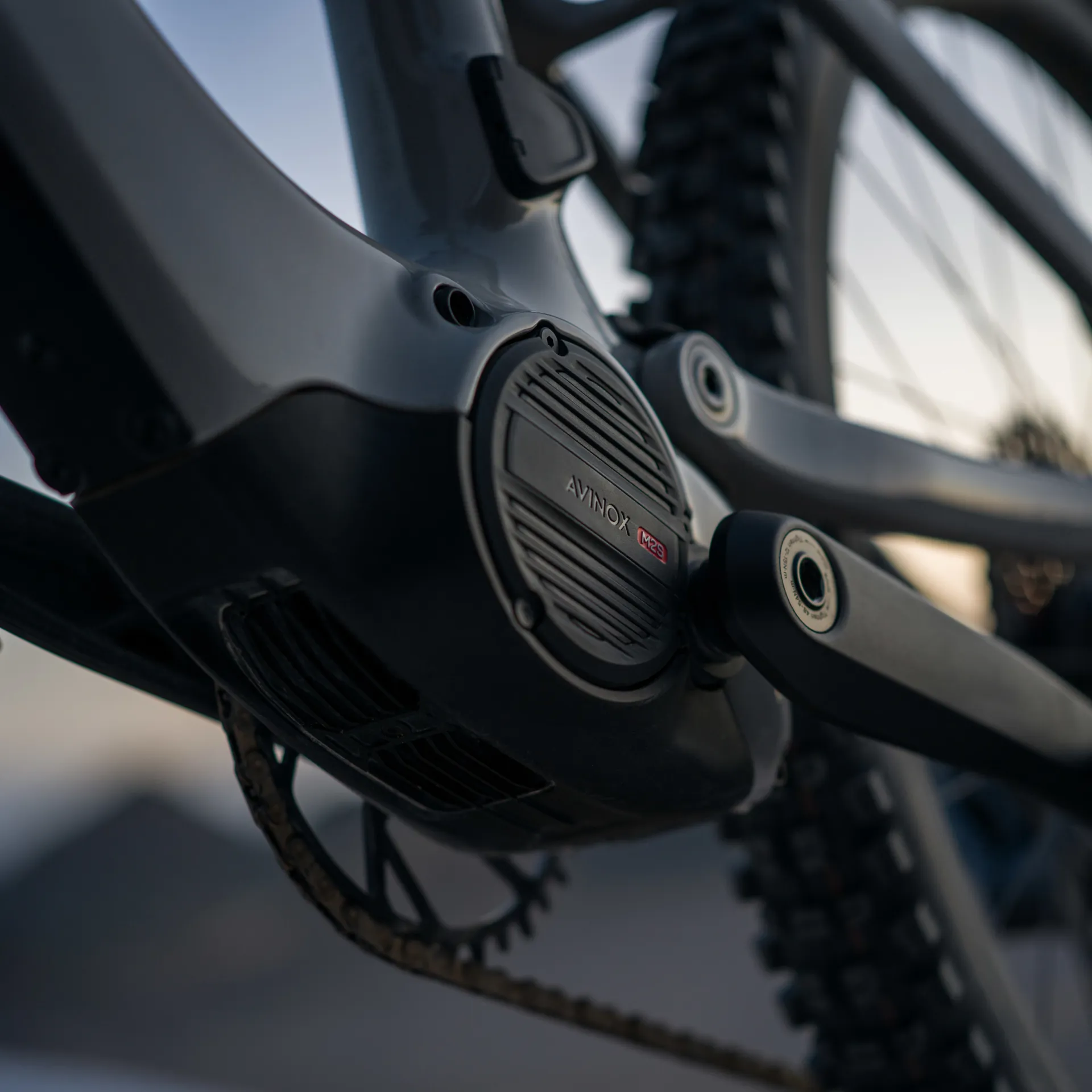

Drive Unit
Potent Power, Smooth Assistance
Max Torque
150Nm
M2S Drive Unit Weight
2.59kg
Peak Power
1500W
Surging Power, Naturally Refined
Power delivery shouldn't feel abrupt. The Avinox M2S Drive Unit utilises multiple high-precision sensors and intelligent algorithms to adjust output in real-time, delivering a natural, linear pedaling feel. The Avinox Drive System also features a specialised Auto mode, which adapts assistance in real-time based on road conditions and riding position. For the most challenging trails or steep inclines, activate Boost mode to instantly get 150Nm of torque and 1500W high-power assistance.
Whisper-Quiet, Immersive Riding
Innovative compound planetary gears and helical gear design suppress the operating sound of the Avinox M2S Drive Unit to as low as 45dBA. On descents, rattling is kept to a minimum, so the sound of the wind and trail feedback become clearer, allowing you to focus on your rhythm and handling, fully immersing yourself in the joy of riding.
Compact, More Capable
While weighing just 2.59kg, the Avinox M2S Drive Unit has achieved a qualitative leap in performance. Compared to the previous generation, power density has increased by 45.9% and torque density by 21.6%.
Battery and Range
Custom Cells, Higher Output
Weight: 3.18kg
Rated Capacity: 700Wh
Charge Cycles: 500 cycles
Charge Fast, Ride Free
A 700Wh high-capacity battery paired with 3x super-fast charging supports not only all-day epic rides but also allows you to quickly recharge during breaks, eliminating range anxiety.
Powerful Range
Custom Battery Cells
Ultra-Fast Charging
Fast Charging
Dual-Battery Expansion option
Touchscreen Control System - Smart Ride, Ready To Go
Smart Offline Navigation
The Avinox Ride app is compatible with third-party route imports and can convert historical tracks into route files (GPX/FIT/TCX formats), allowing one-click synchronisation and management of ride data. Once the Control Display receives the data, it can navigate independently without a phone connection, providing real-time turn-by-turn guidance and off-course alerts.
Smart Heart Rate Control
No complex parameter settings are required. Riders simply set a target heart rate zone in the Avinox Ride app and pair a heart rate monitor. The drive system then automatically adjusts drive unit output based on real-time data, keeping you in the optimal heart rate zone to ensure safety.
Smart Companion
Amflow PX seamlessly integrates cutting-edge smart technology into your daily ride, delivering effortless convenience on every journey.
Supports GPS, IoT services, OTA updates, Bluetooth, remote locating [15], and Bike Protection features.
Wireless Controllers allow one-click switching of the front light and toggling between high/low beams for convenient operation.
Customise your exclusive interaction interface within the Avinox Ride app.
Premium Components
Premium Build, Uncompromising Performance
Deeply customised in collaboration with world-class brand FOX, it achieves a deft balance between sensitive bump absorption and solid support through exclusive damper tuning and optimized suspension kinematics.
Featuring the Magura Gustav Pro Hydraulic Disc Brakes and massive 203mm rotors, it delivers instant braking response in all conditions.
Designed with a mixed-wheel setup with a 29-inch front wheel and a 27.5-inch rear wheel (mullet) and equipped with Schwalbe Radial tyres for more solid and reliable traction.
All-Round Reliability
Quality Assurance, Worry-Free Experience
Proven Reliability
Rigorous Testing
