Sometimes you need the freedom to escape. This bike gives you the power to do that, with smooth, natural-feeling hub motor assistance in a sleek off-road capable frame that's home to a 237 Wh battery.
Sometimes you need the freedom to escape. This bike gives you the power to do that, with smooth, natural-feeling hub motor assistance in a sleek off-road capable frame that's home to a 237 Wh battery.
Merida

Merida eSilex 400 eGravel Bike in Low Key Green/Brown

£2,650.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS

Our returns policy lasts 30 days from date of delivery. We are unfortunatly unable to offer a refund or exchange once this time frame has been exceeded.

To be eligible for a return, your item must be unused, unworn, undamaged and in the same condition that you received it. It must also be in the original packaging with all tags and labels attached so that the item may be re-sold.

For ALL returns, whether a general, unwanted item return or in the case of a faulty or damaged item. please contact customer services in the first instance either by email
shop@kenellerkercycles.co.ukor via telephone on 01482 446341.Instuctions for return and will be given at this time. Please do not return any item without authorisation.

Please do not send your purchase back to the manufacturer. In the case of faulty goods or damage, we have to receive authorisation from the manufacturers prior to return.
Several types of goods are exempt from being returned. Perishable goods such as food, supplements, treats, creams and lotions cannot be returned once opened.

Additional non-returnable items:
Gift cards
Downloadable software products
Some health and personal care items

There are certain situations where only partial refunds are granted: (if applicable)

Book with obvious signs of use
Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
Any item that is returned more than 30 days after delivery.

Refunds (if applicable)

General returns are at the expense of the purchaser: i.e you are responsible for the cost of returning the item and the goods remain your property until they are recieved back with us ( this is logged with a time / date at our premesis when delivered). We STRONGLY reccomend that items are returned using a fully tracked and insured service, as the goods, if lost in transit by the courier, remain YOUR responsibility. We accept no liability for any returns lost or damaged by a courier whilst in transit.
Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If the return is approved, your refund will be processed within 1 working day via the original method of payment.
Please allow up to 7 Working days for the credit to appear on your account.

Late or missing refunds (if applicable)

If you haven’t received a refund after the stated mimimum period for processing with your payment provider or bank, please, in the first instance, contact your credit card company or bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund after the above time period, please contact us either by phone or email

Sale items(if applicable)

Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Exchanges (if applicable)

We only replace items if they are defective or damaged after we have recieved authorisation form the item manufacturer. Please contact us in the first instance either by phone or email and we can then begin the faulty goods procedure.

Exchanges.
If you need to exchange your purchase for a different size or colour, we are more than happy to accomodate, providing we have a suitable exchange item in stock. Please contact us via telephjon e or email in the first instance - BEFORE returning the goods and we can appraise and tailor your exhange to suit the stock or re-order position.
Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

Shipping

To return your product please contact us first either via phone or email so we can log and expect your returning item. We will give you all the return address cetails at this time.

As previously stated (see RETURNS section above). You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you are returning goods that are faulty or damaged, once we have recieved authorisation from the manufacturer, we will either facilitate return of goods directly to the manufacturer - at no cost to you, or the manufacturer will not require the item return and will conduct the faulty goods claim via photographic evidence.

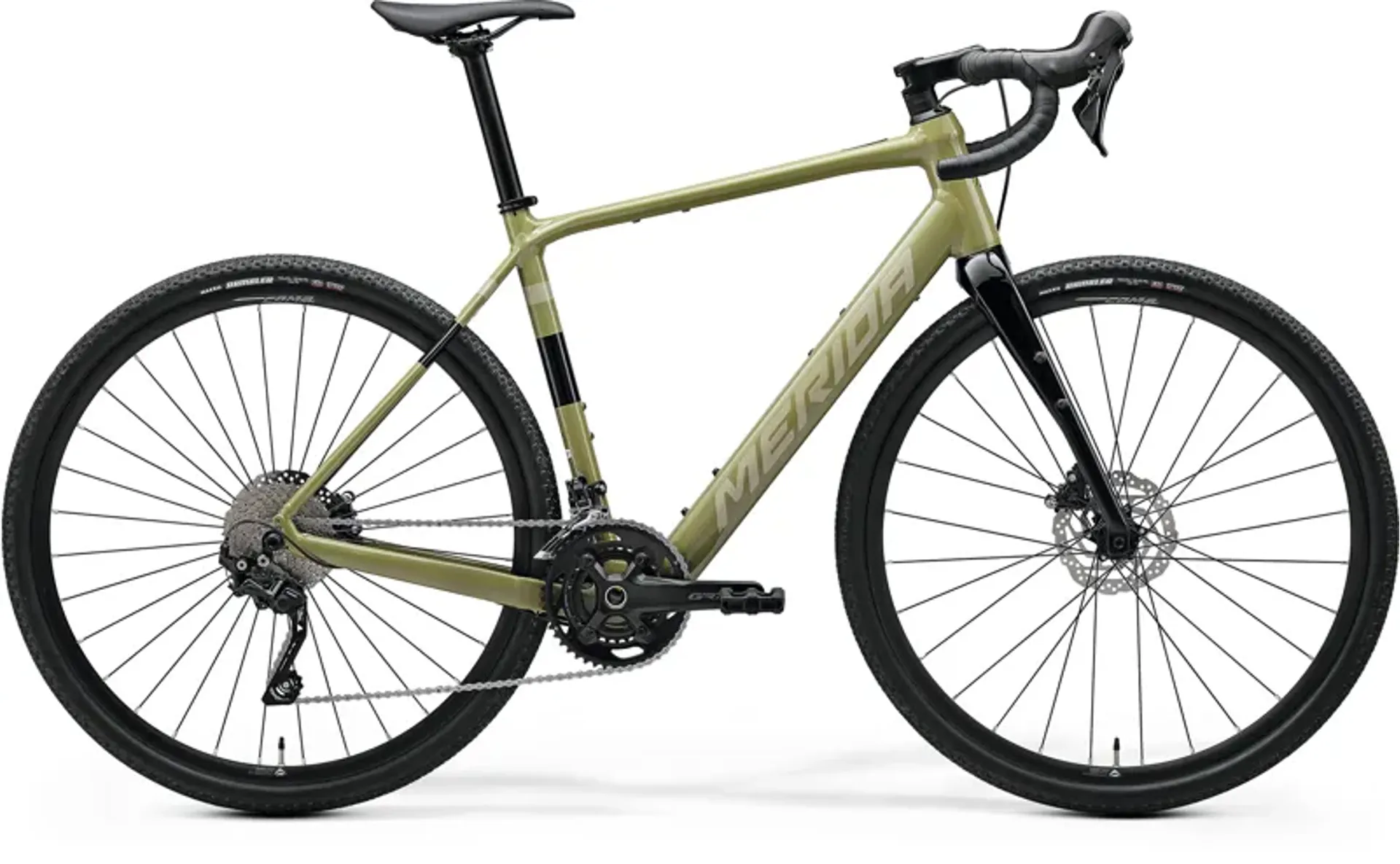

Merida eSilex 400 eGravel Bike in Low Key Green/Brown

Season:2026

Brand:Merida

Code:P-R893

Sometimes a small push is all that's needed to open up a whole new world of exploration.

The eSILEX 400 pairs a sleek, lightweight frame with versatile gravel tyres on 700c rims to the helping hand of the latest MAHLE ebikemotion X30 hub drive motor and a 237 Wh battery to help expand your riding horizons. A fully-featured frame and carbon fork with plenty of mounts is ideal for overnight bikepacking trips or smaller adventures, while the smooth shifting and powerful braking of the Shimano GRX groupset with double chainset makes for reliable companions, on or off the road.

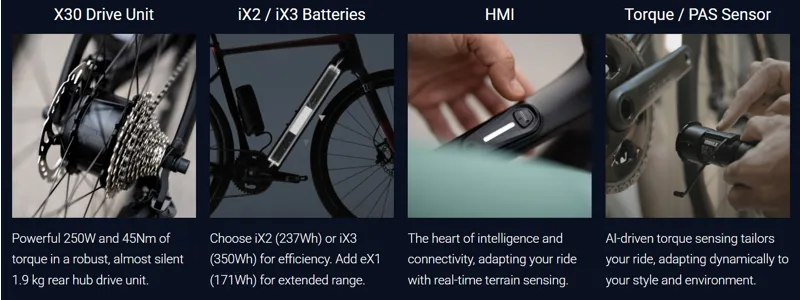

The latest rear-hub MAHLE X30 system with integrated battery offers a neutral support level whenever your journey requires some e-motor assistance. You can even use an externally mounted 208 Wh MAHLE Range Extender to boost range. Depending on where you want to take it, the eSILEX is available in the more rugged 650b or the more fast-rolling 700c set-up of this model, the 400. Both versions come with gravel/off-road tyres for extra grip. A large number of fixing points on the frame as well as the fork, turn the eSILEX into an adventure rig without any fuss.

The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively without power assistance. There is almost no drag at all from the motor when it's not engaged. The system has an iWoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features. The frame has mounts for mudguards and rack and a neat hidden kickstand mount. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit neat.

Highlights:
- Latest MAHLE X30 hub motor gives natural feeling assistance
- 3 assistance levels of up to 250W of power, customisable in the My SmartBike app
- Triple butted aluminium frame with built-in 237 Wh battery
- Range of up to 90 km (55 miles)
- Sleek "normal bike" silhouette and low weight
- Shimano GRX drivetrain and hydraulic brakes
- Fast-rolling 700c wheels with gravel tyres
- Multiple frame and fork fixing points for extra carrying capacity
- Enhanced riding with Mahle's My SmartBike app


My SmartBike app:
Record and Manage Rides
Manage your rides with ease. Track activities, adjust settings, and record routes even offline. They'll sync automatically when you're back online.

Instant Connectivity
Your smartphone connects you to your eBike for immediate ride adjustments and performance insights.

Smart Assist
Get personalised riding assistance automatically adjusted for your journey's needs. No toggles, no connection required.

Strava Integration
Connect with Strava to navigate routes, track activities, and much more, all within My SmartBike.
Technical Information
  • Frame
    eSILEX LITE III material: aluminium 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize 100x9/135x9mm axle standard BSA bottom bracket standard
  • Frame size
    XS, S, M, L, XL
  • Fork
    MERIDA SILEX CF2 carbon max. 700x42C / 700x35C (with fender) / max. 50x650B wheelsize
  • Brakes
    Shimano GRX400 2 piston
  • Rotors
    Shimano RT10 / Shimano RT26 160 mm
  • Headset
    MERIDA 8158
  • Handlebar
    MERIDA EXPERT GRII material: aluminium 400mm (XS-S) , 420mm (M) , 440mm (L/XL)
  • Handlebar stem
    MERIDA TEAM CC III material: aluminium 31.8mm diameter -6° stem angle 80 mm all sizes
  • Grip
    MERIDA ROAD EXPERT
  • Derailleur (f)
    Shimano GRX400
  • Derailleur (r)
    Shimano GRX400
  • Seat post
    MERIDA EXPERT material: aluminium 30.9mm diameter 0mm setback
  • Seat clamp
    MERIDA EXPERT
  • Saddle
    MERIDA COMP SL V-mount
  • Pedal
    VP VPE-891
  • Chain
    KMC e10
  • Crank
    Shimano GRX600 46-30 teeth 170 mm-XS/S/SM/ML, 175 mm-L/XL
  • Freewheel
    Shimano CS-HG50 11-36 teeth 10 speed
  • Bottom bracket
    Shimano RS501 BSA
  • Hubs
    Shimano TC500 100x12mm width front hub 28 spoke holes Centerlock
  • Rim
    MERIDA COMP SL 17mm inner width 22mm height material: aluminium
  • Tyres
    Maxxis Rambler 700Cx40 fold EXO
  • Axles
    MERIDA EXPERT SL
  • Spokes
    Black stainless black nipples
  • Light front
    USB rechargable Chance Good CG-119PG-BLACK(1)
  • Light rear
    USB rechargable Chance Good CG-404RG-BLK
  • Drive unit
    Mahle X30 Drive Unit
  • Battery
    Mahle ix2 237Wh 237Wh
  • Approx. weight
    14.4 kg weighed at frame size M
