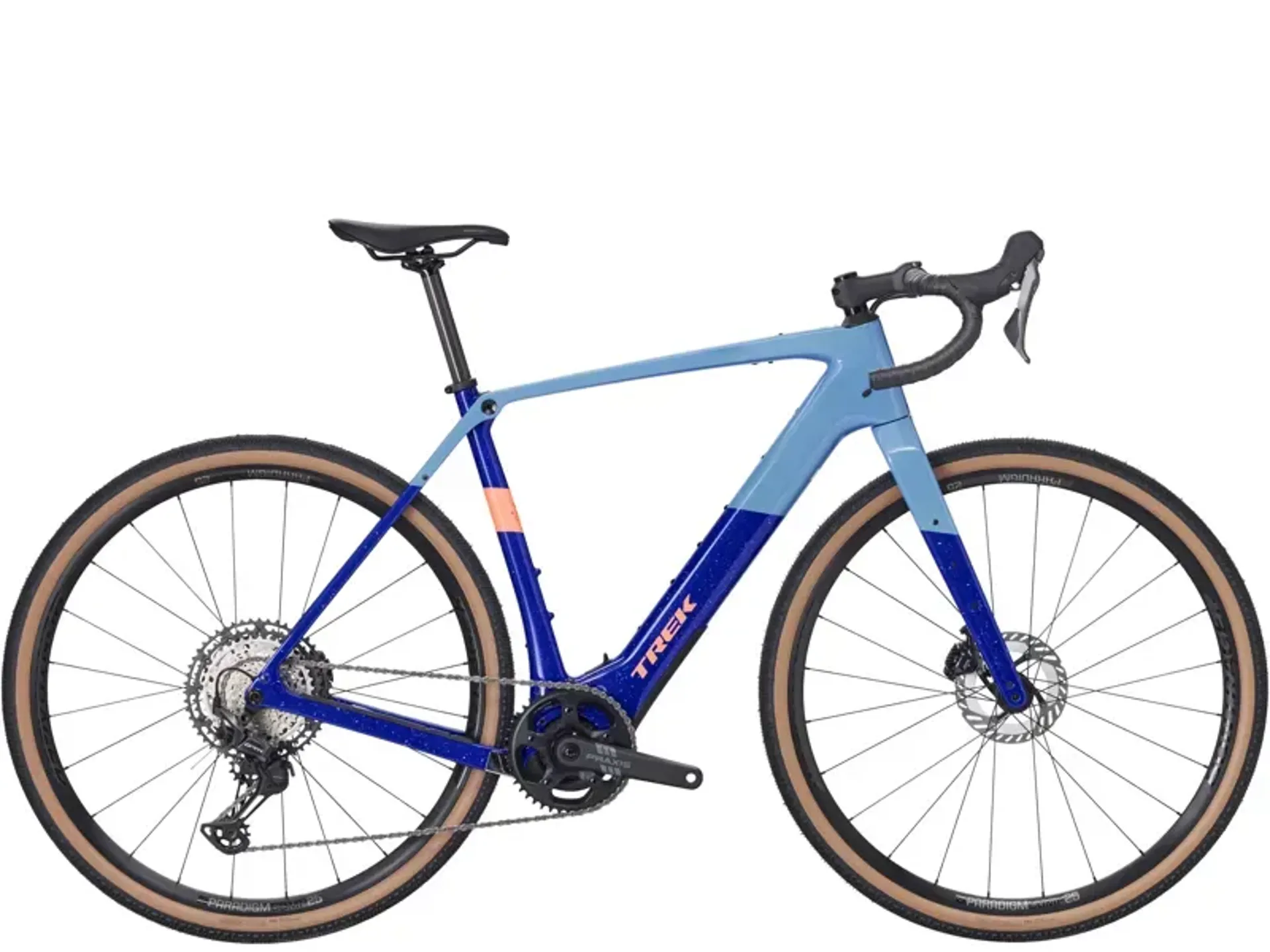

Trek Checkpoint+ SL 5 E-Gravel Bike In Fjord Blue/Cobalt Blue

Season:2026

Brand:Trek

Code:57446BLU

The Checkpoint+ SL 5 is an electric gravel bike built to take you the distance, featuring an OCLV Carbon frame and endurance geometry for comfortable long-haul riding.

This bike includes a TQ HPR60 motor with a smooth and quiet boost and a 360 Wh battery that keeps going on your biggest rides. It comes ready to roll with durable alloy wheels and 12-speed Shimano GRX 1x shifting.

The industry-leading TQ HPR 60 harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio. It is ultra-compact, whisper-quiet, and offers a natural-feeling assist up to 25 kph (18 mph) with 80 km (50 miles) of range (in Eco mode). You can choose how much boost you get and when you get it with three assist modes.

Explore even further with an optional 160 Wh Range Extender that fits neatly in your bottle cage and gives you an extra 44% more range.

IsoSpeed technology soaks up fatiguing bumps in the road so you can ride stronger for longer. Confident and comfortable Gravel Endurance geometry puts you in a more relaxed upright riding position to tackle even the most epic, all-day adventures.

The Trek Central app seamlessly connects to your Checkpoint+ for real-time range calculations, activity tracking, and custom motor tuning. Plus, navigation and mapping features help you stay on course wherever you ride.

Shimano GRX was designed from the ground up for gravel adventure, featuring gravel-specific ergonomics, optimised gearing options, rugged reliability, and a quiet, stable drivetrain.

Features:

  • Room for tyres of up to 50 mm wide (as measured).
  • Mounts on the frame and fork for front and rear racks, mudguards, and Adventure Frame and Triangle Bags.
  • Designed to fit extra hydration in addition to all your bags.
  • Compatible with a suspension fork (up to 40 mm travel) and a dropper post.
Technical Information
  • Frame
    500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle

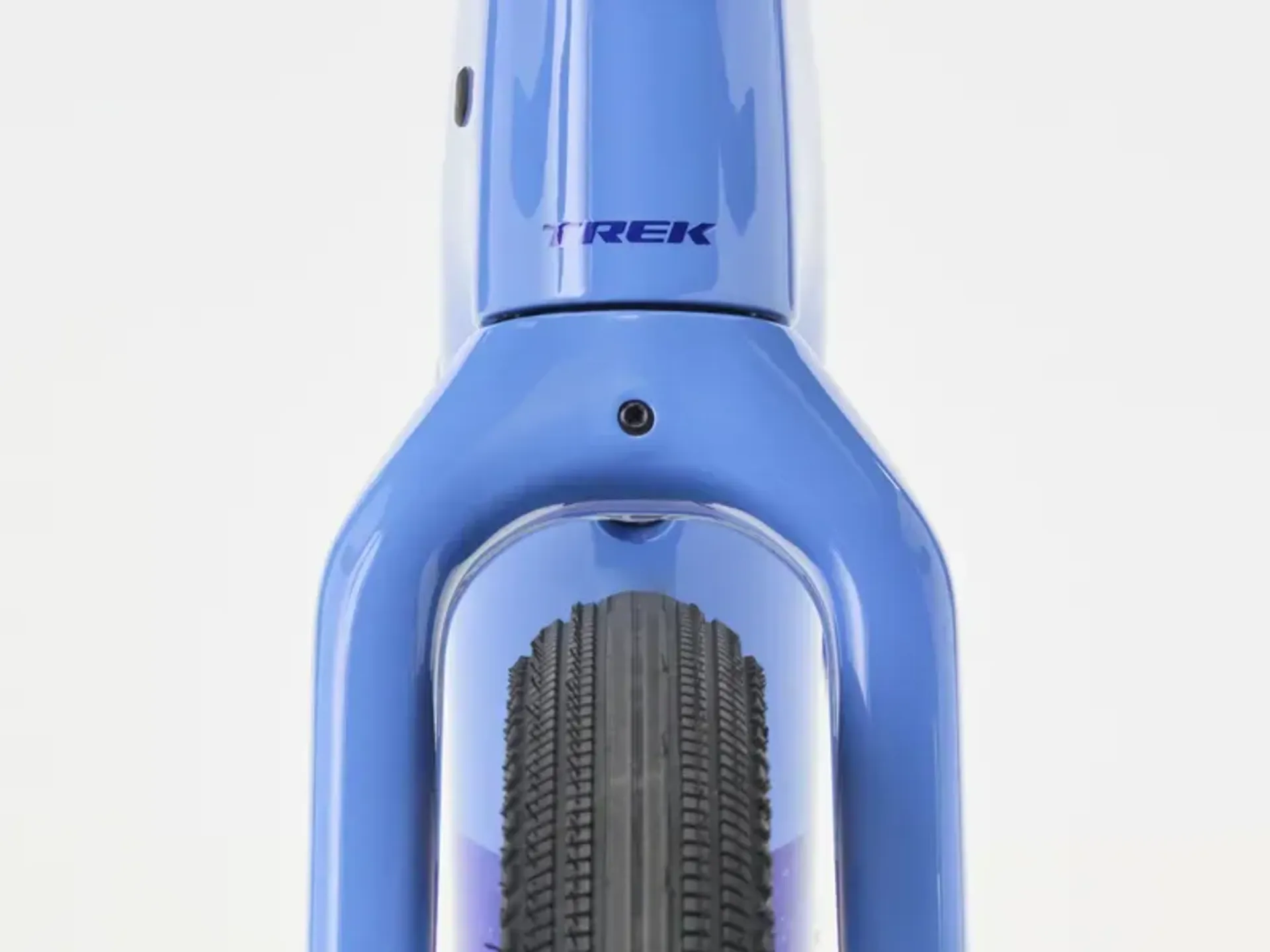

  • Fork
    Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle
  • Weight
    ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
  • Battery
    TQ 360Wh
  • Charger
    TQ 4A charger
  • Computer
    TQ LED display with Bluetooth & ANT+ connectivity

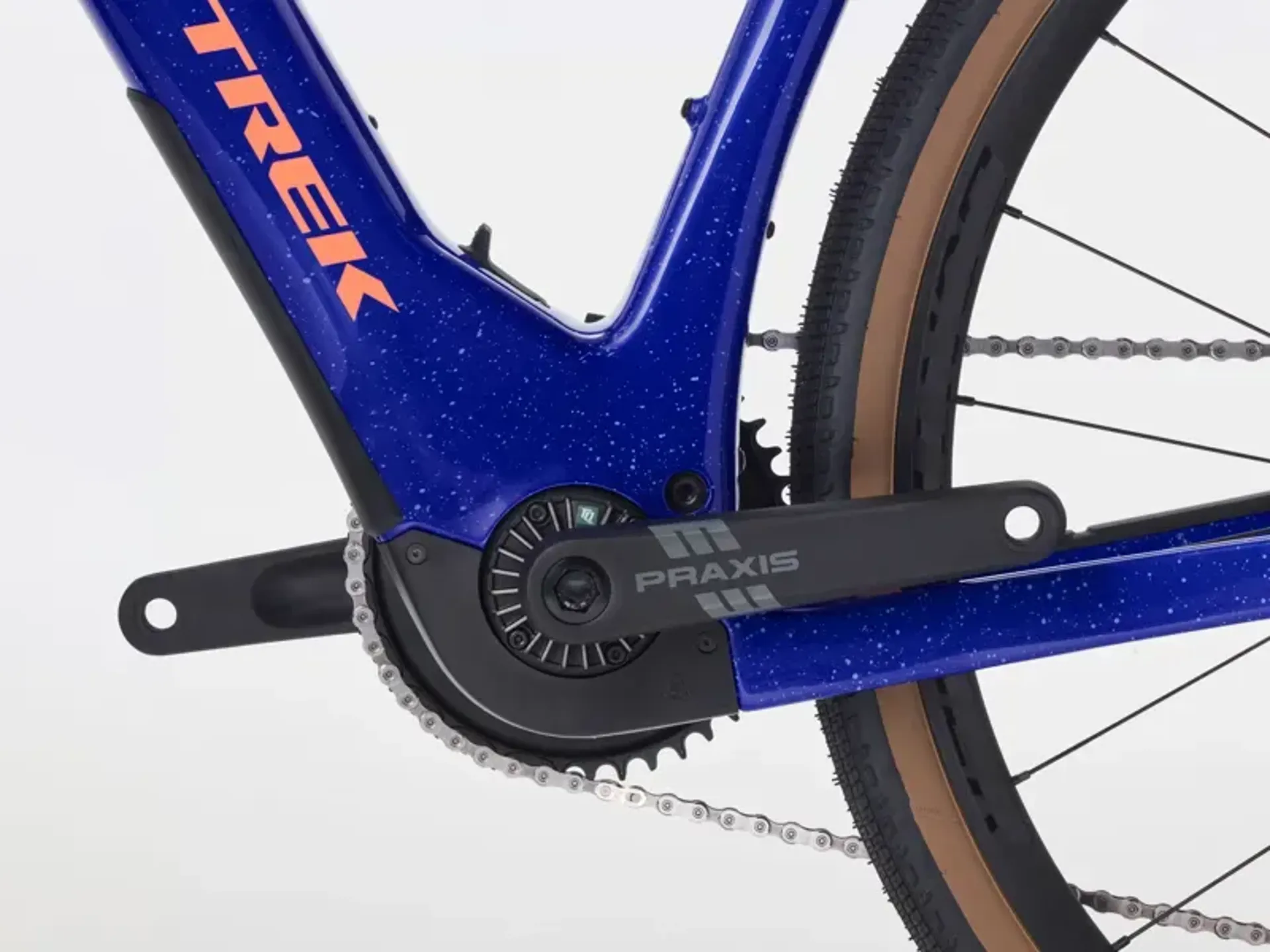

  • Motor
    TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
  • E-bike classification
    Class 1
  • Shifter
    Shimano GRX RX820, 12-speed
  • Rear derailleur
    Shimano GRX RX822, 51T max cog
  • Crank
    Size: XS, S: Praxis Alloy, 165 mm length; Size: M, ML: Praxis Alloy, 170 mm length; Size: L, XL: Praxis Alloy, 172.5 mm length
  • Cassette
    Shimano XT M8200, 10-51, 12-speed
  • Chain
    Shimano XT M8100, 12-speed
  • Max. chainring size
    1x: 44T
  • Wheel front
    Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
  • Skewer front
    Bontrager Switch chamfered thru axle
  • Skewer rear
    Bontrager Switch chamfered thru axle, removable lever
  • Tyre
    Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Max tyre size
    50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
  • Saddle
    Verse Short Comp, steel rails, 145 mm width
  • Seatpost
    Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
  • Handlebar
    Size: XS, S: Bontrager Elite Gravel, alloy, 40 cm width; Size: M, ML: Bontrager Elite Gravel, alloy, 42 cm width; Size: L: Bontrager Elite Gravel, alloy, 44 cm width; Size: XL: Bontrager Elite Gravel, alloy, 46 cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem
    Size: XS: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: S, M: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: ML, L: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90mm length; Size: XL: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
  • Brake rotor
    Shimano CL800, CentreLock, 160 mm
  • Brake lever
    Shimano GRX RX820, 12-speed
  • Rotor size
    Max brake rotor sizes: 180 mm front and rear
