Amflow offers an unrivalled combination of power, range, and weight. Packed with innovative and seamlessly integrated technology, these electric full suspension mountain bikes are built to deliver the ultimate ride.

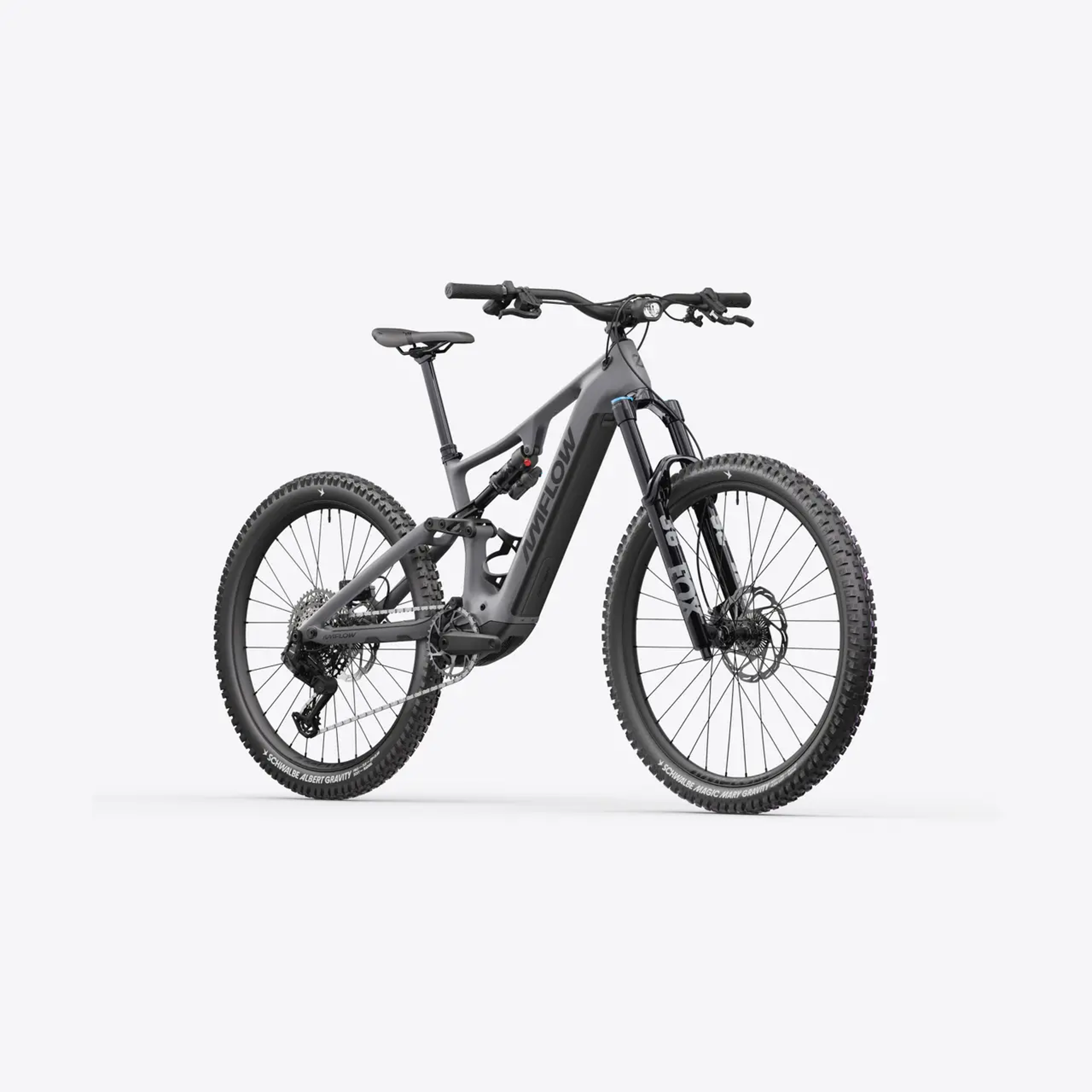

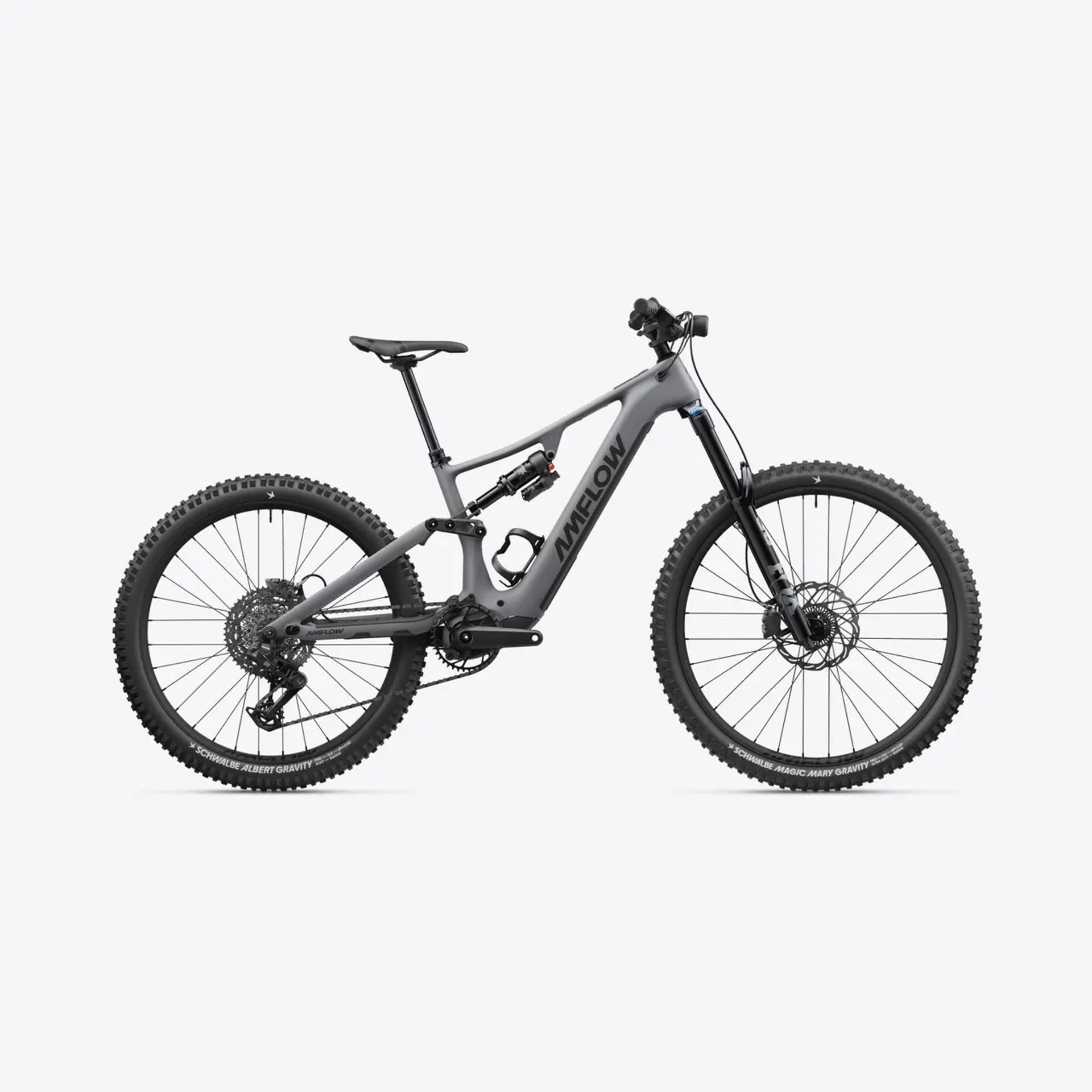

PR Carbon Pro
Amflow PR Carbon Pro combines striking aesthetics with a full-carbon frame, delivering up to 150Nm of torque and 1500W of peak power courtesy of the Avinox M2S Drive Unit. With a swappable battery for extended rides, it gives you the freedom to ride further and push your limits in style.
Highlights
- Class leading ultra-powerful, smooth and quiet Avinox M2S motor:
"Its natural feel, incredibly smooth power delivery and masses of control make it stand out above anything else in the eMTB segment" (BikeRadar).
"With 1,500 watts of peak power, the M2S pushes Avinox into a new performance bracket. Whether you actually need that kind of output on the trail is a fair question, but in practice, it works surprisingly well and remains impressively controllable. The motor does not merely deliver exceptional power and torque; it sustains that output with a consistency that holds up under lab scrutiny. Add to that improved efficiency, a strong battery platform and a well-integrated digital ecosystem, and the proposition is a compelling one" (E-MOUNTAINBIKE Magazine).
- Removable, long range 800 Wh battery
- Full carbon frame

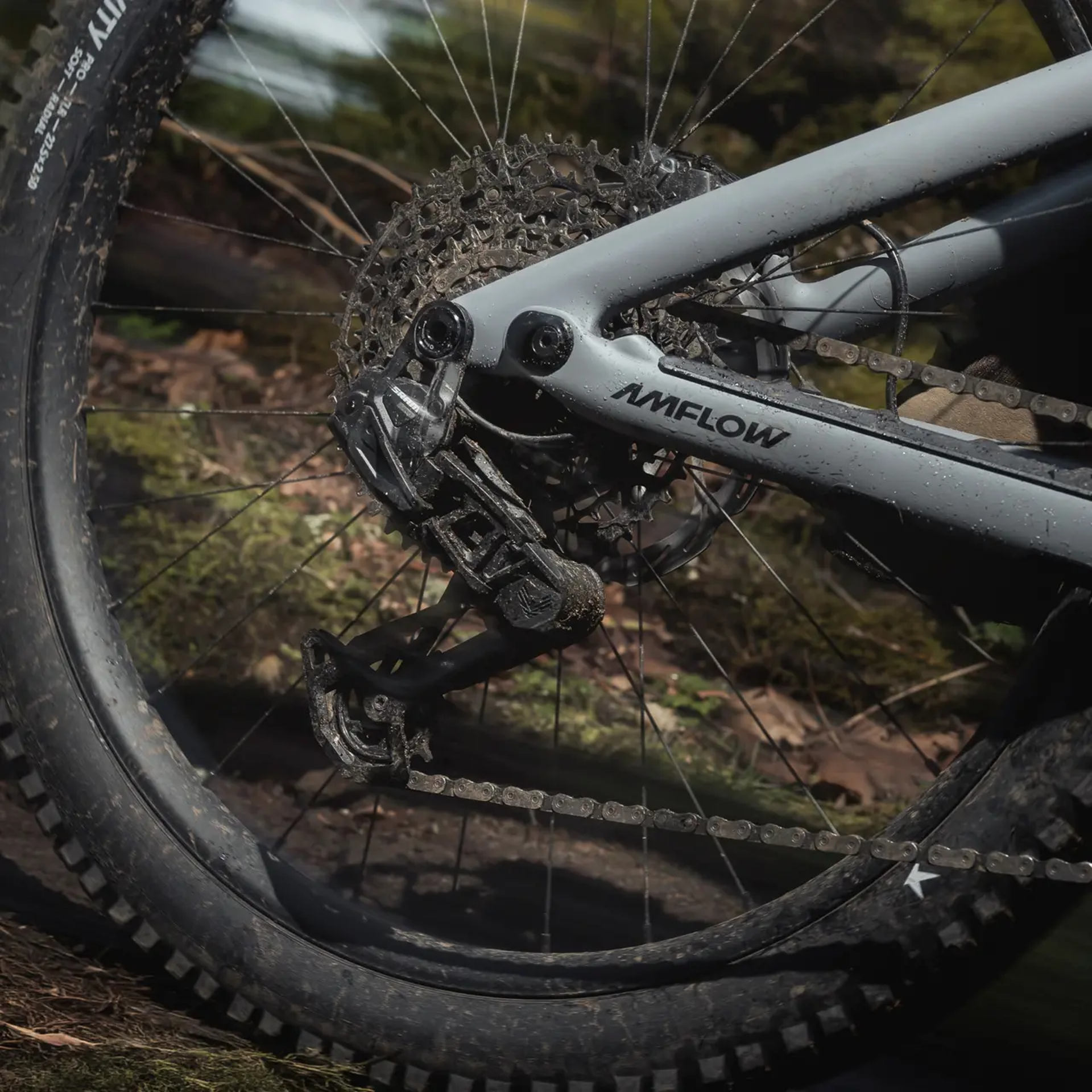

- SRAM S1000 Eagle AXS wireless drivetrain
Upgrades on PR Carbon
- Avinox M2S Drive Unit offering greater torque: nominal 130Nm, peak 150Nm
- FOX 36 Performance fork with GRIP damper
- FOX Float X Performance rear shock
- Avinox 12A/508W Fast Charger
- Magura Gustav Pro brakes
- Schwalbe Magic Mary Gravity Pro Radial front tyre, Schwalbe Albert Gravity Pro Radial rear tyre
Geometry Design: Flexible Adjustment, Effortless Control
Amflow PR features a cutting-edge progressive geometry. With precision fine-tuning available for the head tube angle (5 positions), bottom bracket height (2 positions), and chainstay length (4 positions), it offers up to 40 geometric combinations. This allows for precise adaptation to different terrains and riding styles, empowering you to enjoy the art of tuning and take full control of your ride.
With a default head tube angle of 64.5°, the adjustable headset cups offer 5 levels of fine-tuning (-1°, -0.5°, 0°, +0.5°, +1°). A slacker setting increases trail for greater high-speed stability and a reduced risk of going over the bars. A steeper setting improves agility and climbing efficiency while making the bike less prone to understeer.
A bottom bracket height adjustable to two positions - 349 or 353mm - lets you adapt precisely to different terrain. The 353mm high setting helps you clear rough obstacles with confidence and reduces the risk of bottoming out, while the 349mm low setting lowers the bike's centre of gravity for stronger cornering grip. Combined with the Horst pivot flip-chip adjustment, the bottom bracket height range is up to 16.41mm.
The 4-position adjustable chainstay (440mm to 452mm) offers flexible geometry tuning while accommodating 29-inch wheels, delivering outstanding rollover capability.
Ultra-Light Carbon Fibre Frame, Easy Handling
The Amflow PR frame weighs around 2.9kg, yet never compromises on strength or rigidity. It handles heavy demands with a light touch, making every ride through rough terrain more composed.
Precision, By Design
From power to control, Amflow PR is built without compromise. Experience comprehensive performance that puts you in command of every ride.
Battery and Range

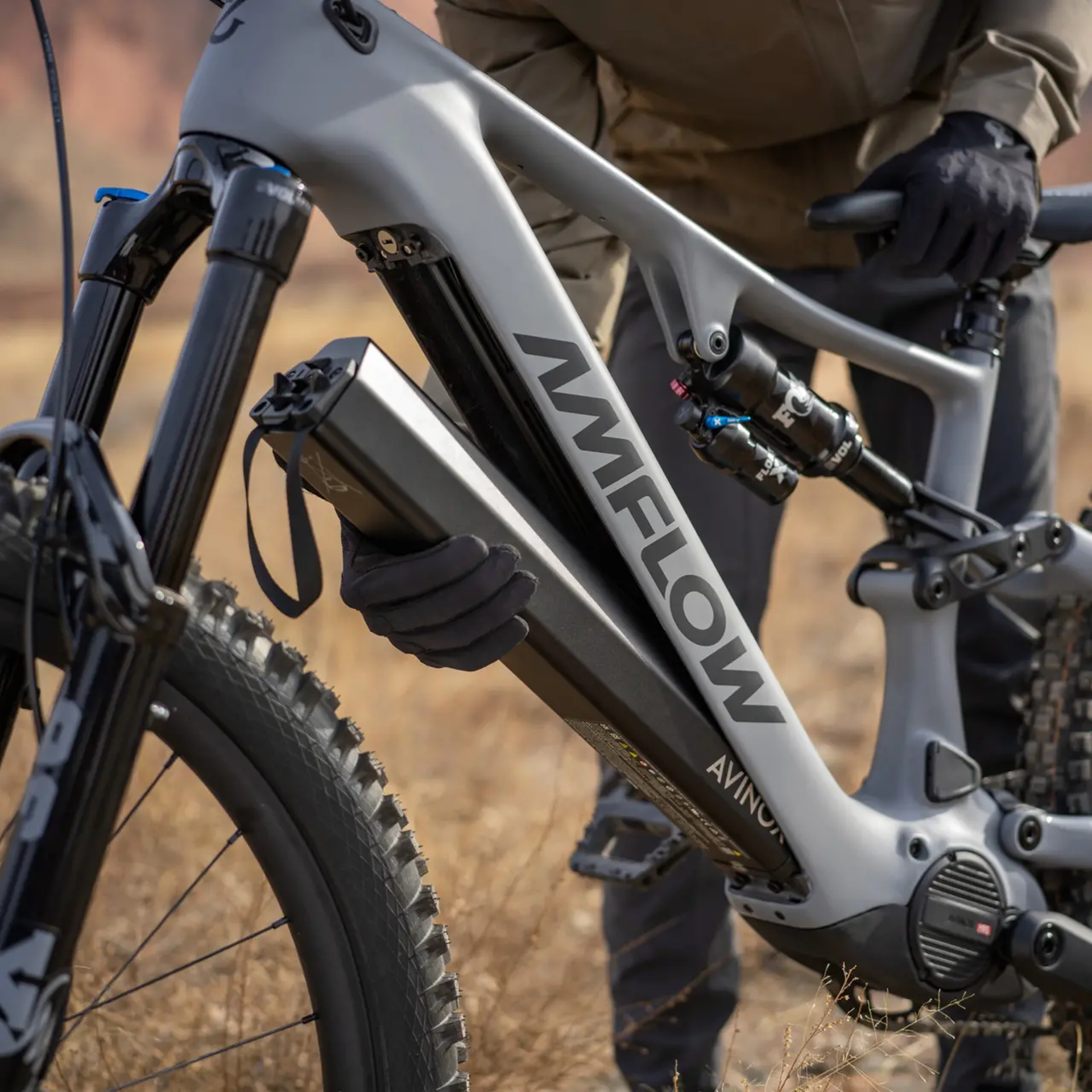

Removable Battery, Long-Lasting Range
An innovative slide rail design meets Battery Lock - delivering an exceptional balance of ease of use and security.
Quick Swap, Easy Recharge
Amflow PR supports independent battery removal for charging and quick swapping, flexibly solving the problem of finding charging stations and enabling rapid energy replenishment on long trips. While reducing maintenance costs, it also makes every departure more worry-free.
Powerful Range
800Wh high-capacity battery with ultra-fast charging. Removable battery and the potential for dual-battery expansion.
More Ride, Less Noise
Innovative compound planetary gears and helical gear design suppress the operating sound of the Avinox M2S Drive Unit to as low as 45dBA. Mechanical noise is well controlled. On the trail, the sound of the wind and trail feedback become clearer, allowing you to focus on your rhythm and handling, fully immersing yourself in the joy of riding.
Natural Support, Peak Power
Power shouldn't be abrupt. The Avinox M2S Drive Unit utilises multiple high-precision sensors and intelligent algorithms to adjust output in real-time, translating power into a natural, linear pedal feel. The Avinox Drive System also features a specialised Auto mode, which adapts assistance in real-time based on road conditions and riding position. For the most challenging trails or steep inclines, activate Boost mode to instantly get 150Nm of torque and 1500W high-power assistance.

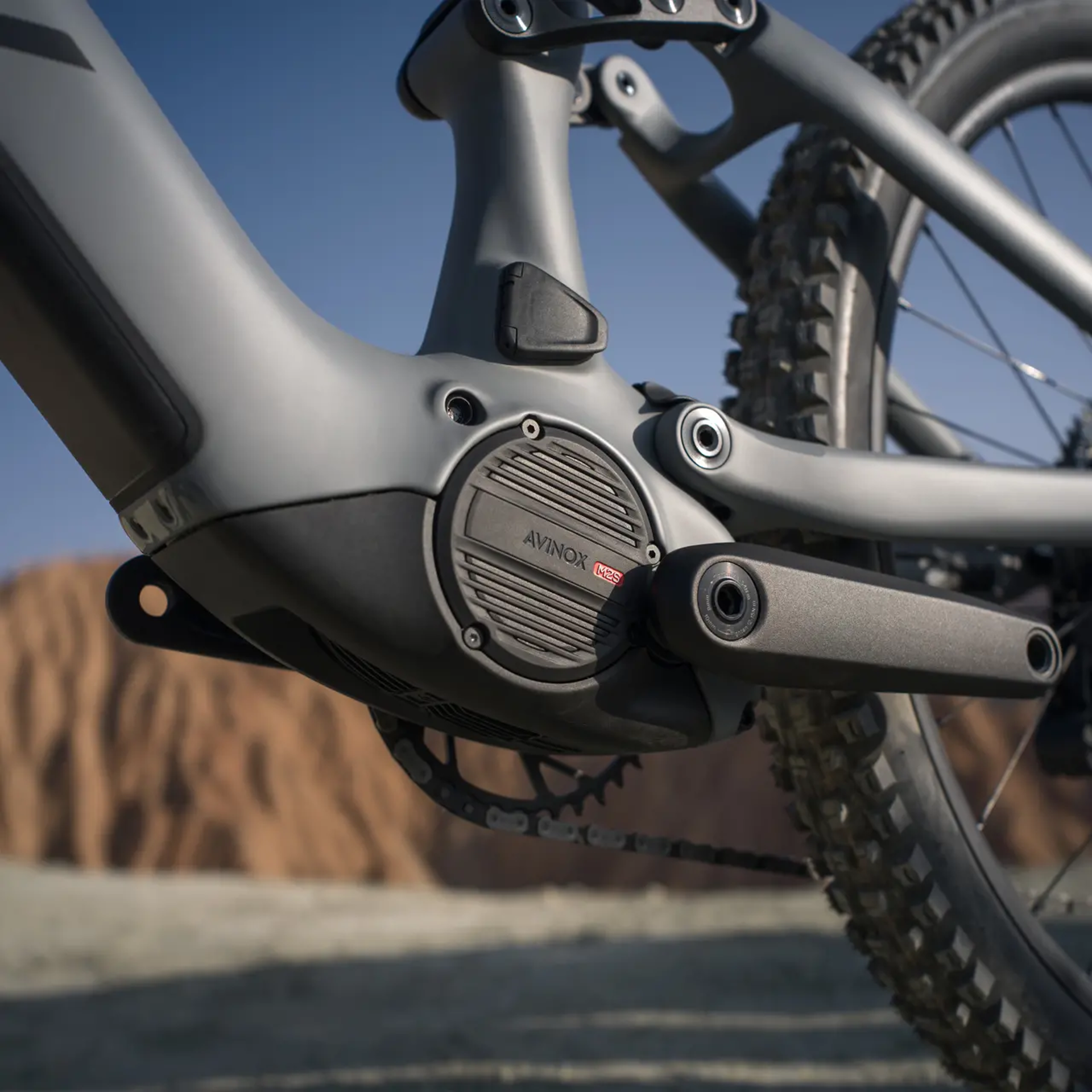

Avinox M2S Drive Unit
The drive unit remains lightweight at approximately 2.59kg, yet its performance takes another leap forward. Compared to the previous generation, power density increased by 45.9% and torque density by 21.6%, vividly embodying the "compact size, massive energy" concept.

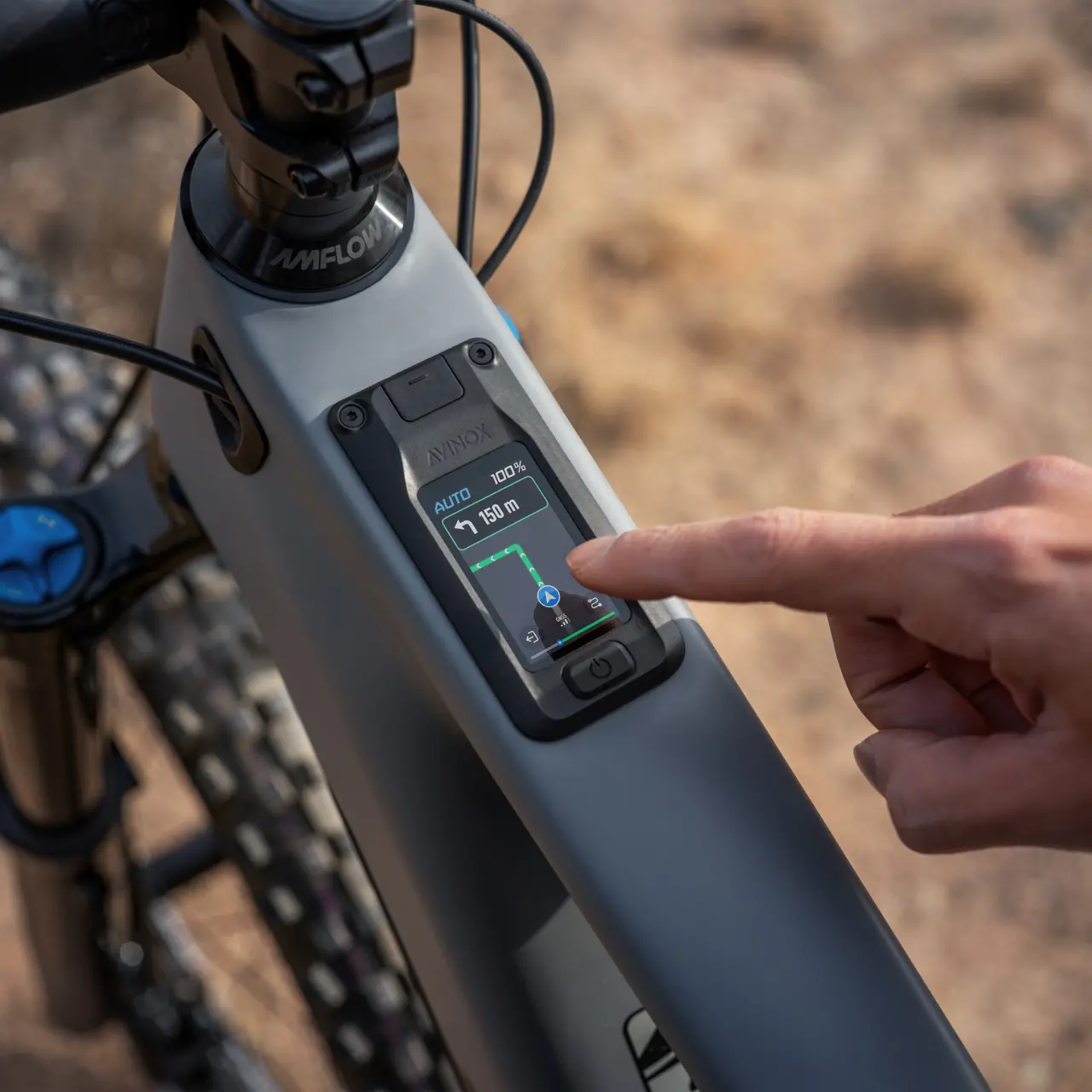

Touchscreen Control System: Smarter, From the Start
Offline Navigation, Made Smarter
The Avinox Ride app is compatible with third-party route imports and can convert historical tracks into route files (GPX/FIT/TCX formats), allowing one-click synchronisation and management of ride data. Once the Control Display receives the data, it can navigate independently without a phone connection, providing real-time turn-by-turn guidance and off-course alerts.
Apple Find My Tracking
Integrated into the Apple Find My ecosystem, leveraging Apple's vast network to help you track your bike's location and battery level anytime via the "Find My"app. It also features a one-tap buzzer function to locate your bike.
Smart Heart Rate Control
No complex parameter settings are required. Riders simply set a target heart rate zone in the Avinox Ride app and pair a heart rate monitor. The drive system then automatically adjusts drive unit output based on real-time data, keeping you in the optimal heart rate zone to ensure safety.
SmoothShift Fast Gear Changes
Deeply integrated with the SRAM electronic rear derailleur, the Avinox Drive System enables the SmoothShift function, allowing you to shift while coasting. Change gears continuously without pedalling to keep your rhythm in check.
Your Ride, More Connected
Amflow PR seamlessly integrates cutting-edge smart technology into your daily ride, delivering effortless convenience on every journey.
- Smartphone connectivity: Supports GPS, OTA updates, Bluetooth, remote locating, Apple Find My and Bike Protection features.

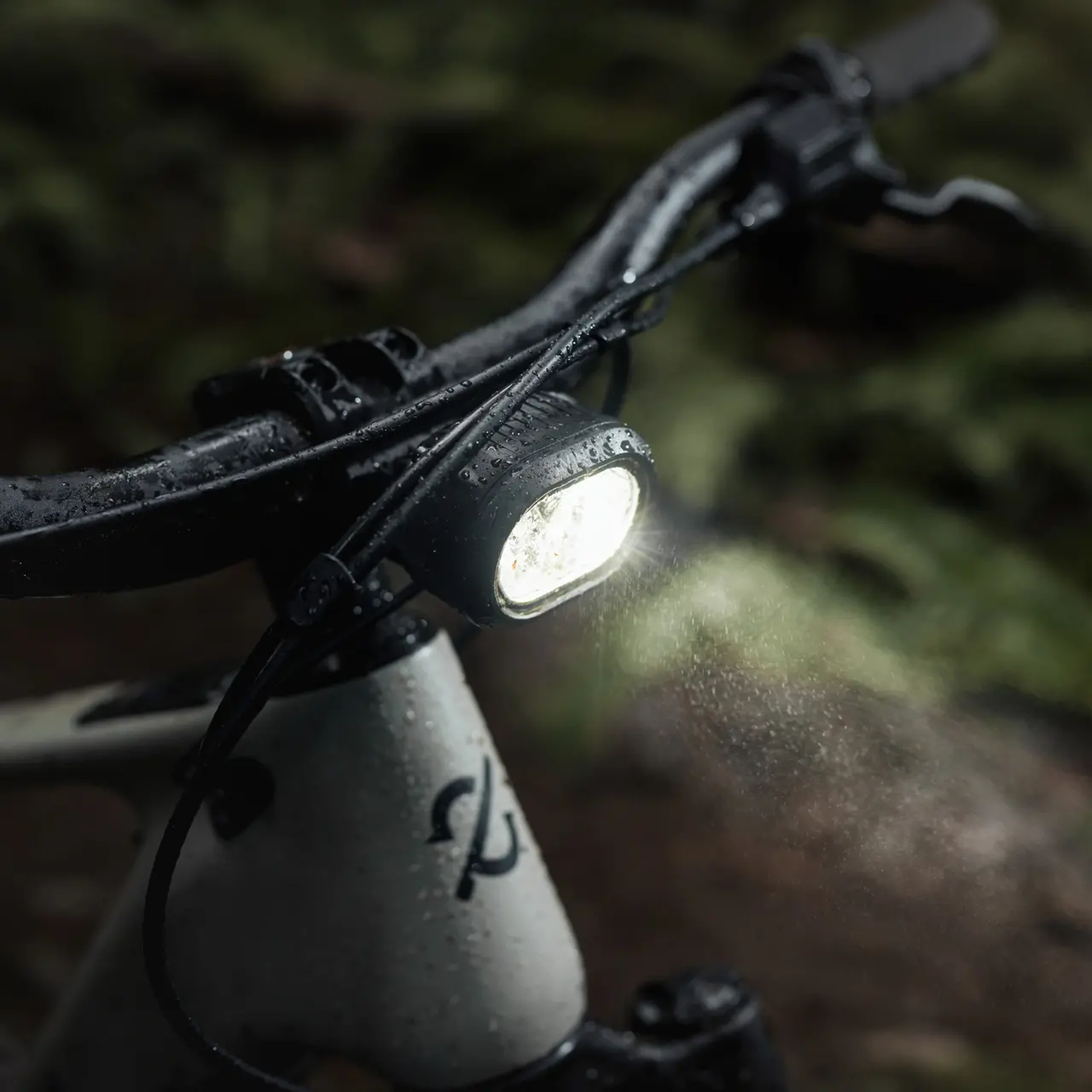

- Smart Light Control: Wireless Controllers allow one-click switching of the front light and toggling between high/low beams for convenient operation.
- Custom Assist Mode: Customise your exclusive interaction interface within the Avinox Ride app.
Premium Build, Uncompromising Performance
Featuring the Magura Gustav Pro Hydraulic Disc Brakes and massive 203mm rotors, it delivers instant braking response in all conditions.
Deeply customised in collaboration with world-class brand FOX, it achieves a deft balance between sensitive bump absorption and solid support through exclusive damper tuning and optimised suspension kinematics.
Designed with a mixed-wheel setup with a 29 inch front wheel and a 27.5 inch rear and equipped with Schwalbe tyres for reliable traction.
