Frameset
Frame: 300 Series Alpha Aluminium, Internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12mm chamfered thru axle

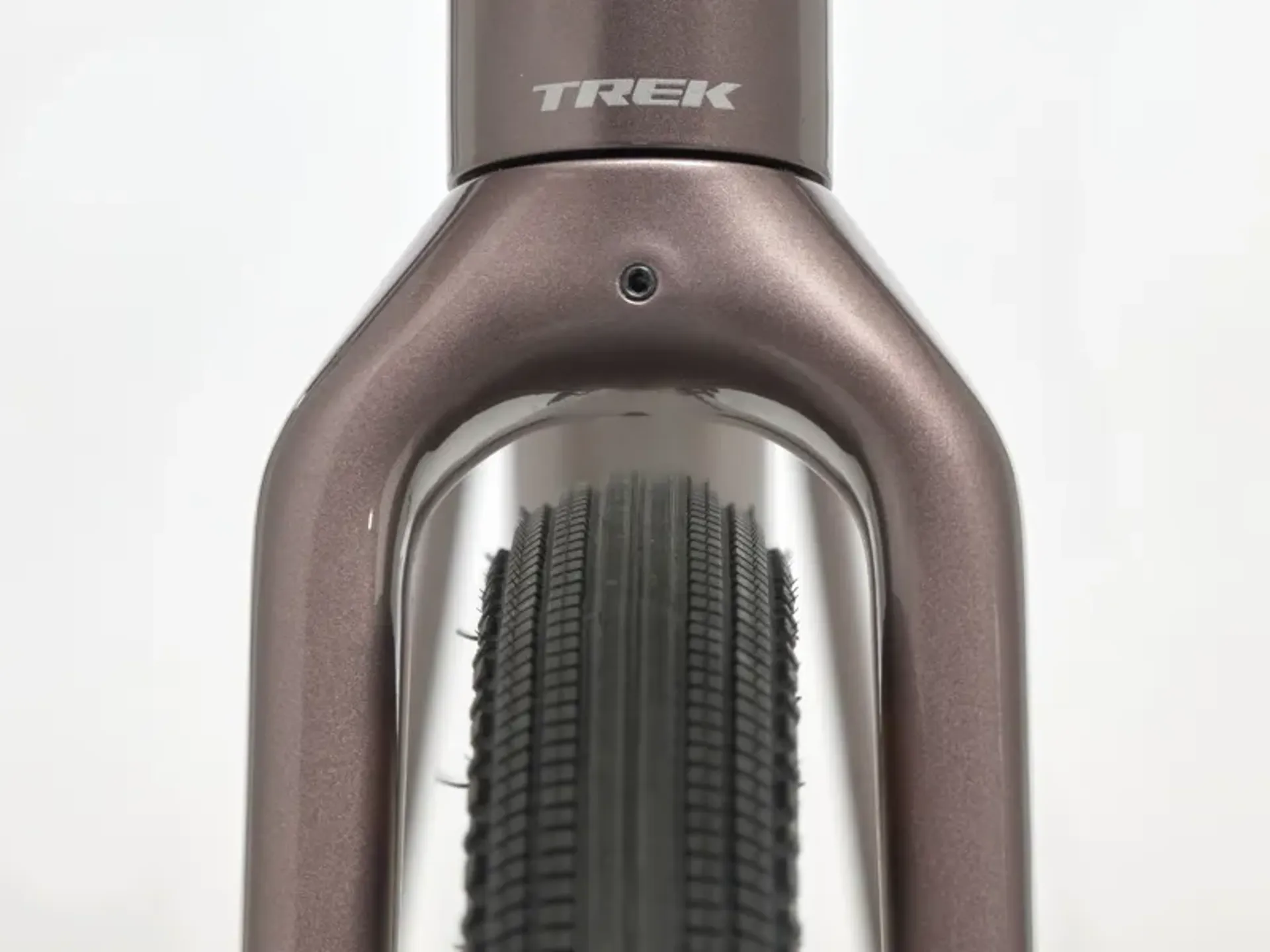

Fork: Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Weight
Weight: ML – 9.87 kg/21.76 lb (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

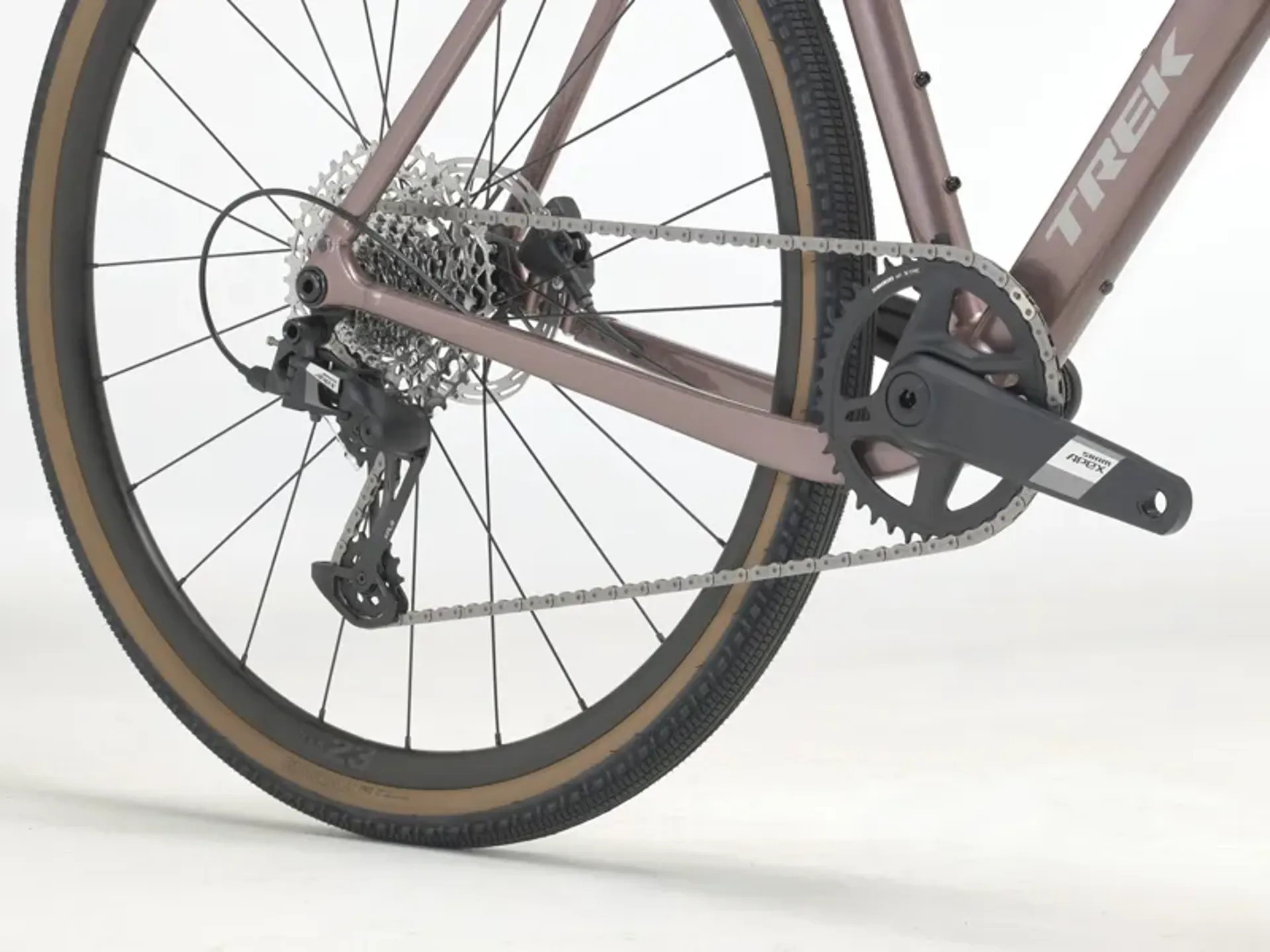

Drivetrain
Shifter: SRAM Apex, 12 speed
Rear derailleur: SRAM Apex XPLR, 44T max cog
Crank: SRAM Apex 1, 40T, DUB Wide; Size: XS, S 165mm length; Size: M, ML 170mm length; Size: L, XL 172.5mm length
Bottom bracket: SRAM DUB Wide, T47 threaded, internal bearing
Cassette: SRAM XPLR PG-1231, 11-44, 12-speed
Chain: SRAM Apex, 12-speed
Max. chainring size: 1x:44 2x: 46/30
Wheels
Hub front: Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle, removable lever
Hub rear: Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Rim: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
Spokes: 14g stainless steel, black
Tyre: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Max tyre size: 50mm without mudguards, 42mm with mudguards (as measured, see manual for details)
Components
Saddle: Verse Short Comp, steel rails, 145mm width
Seatpost: Bontrager alloy, 27.2mm, 12mm offset, 330mm length

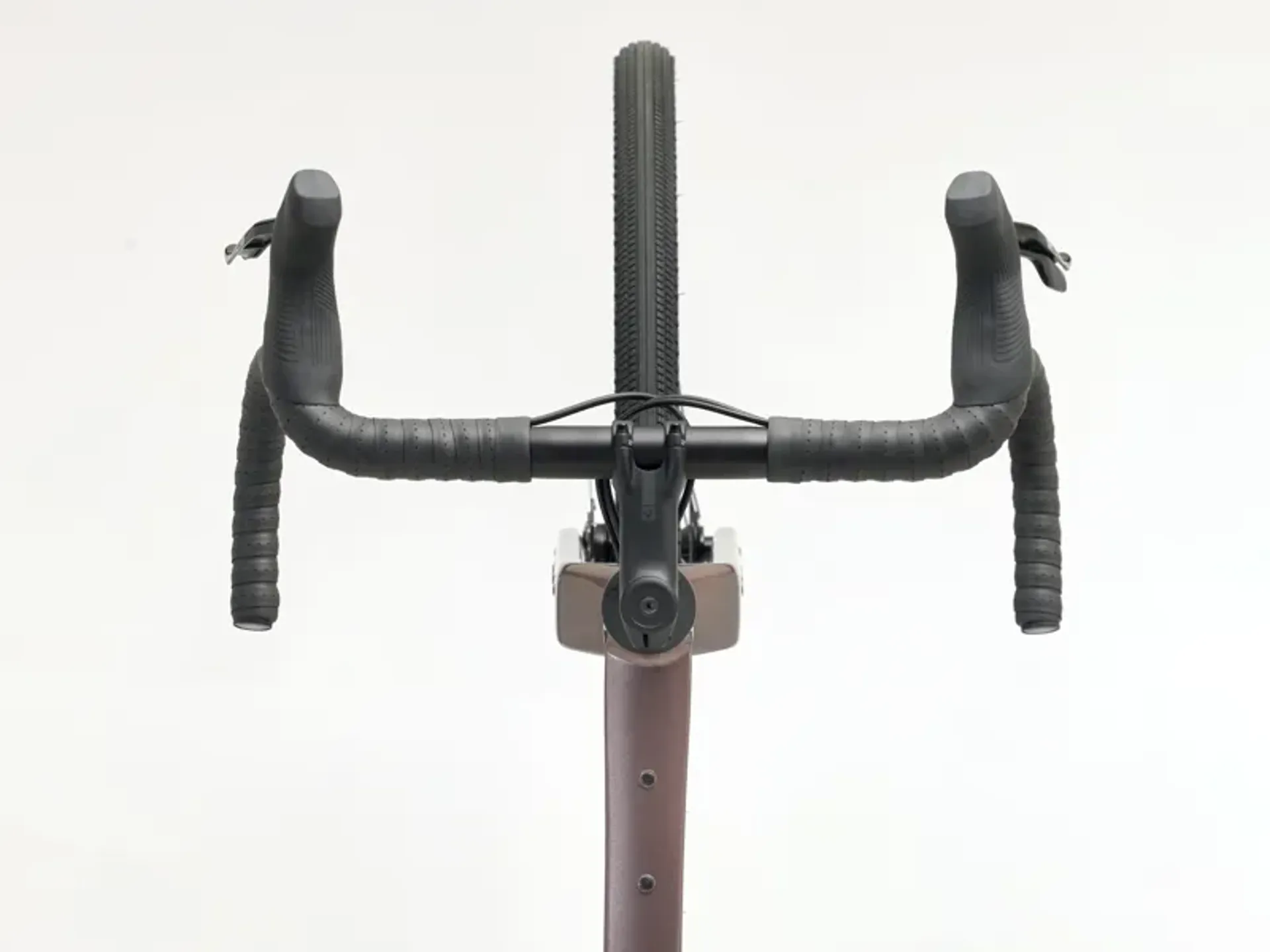

Handlebar: Bontrager Elite Gravel, alloy; Size: XS, S 40cm width; Size: M, ML 42cm width; Size: L 44cm width; Size: XL46 cm width
Handlebar tape: Bontrager Supertack Perf tape
Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree; Size: XS 70mm length; Size: S, M 80mm length; Size: ML, L 90mm length; Size: XL100mm length
Brake: SRAM Apex D1 hydraulic disc, flat mount
Brake rotor: SRAM Paceline, rounded, CentreLock, 160mm
Brake lever: SRAM Apex, 12 speed
Rotor size: Max brake rotor sizes: 180mm front and rear
